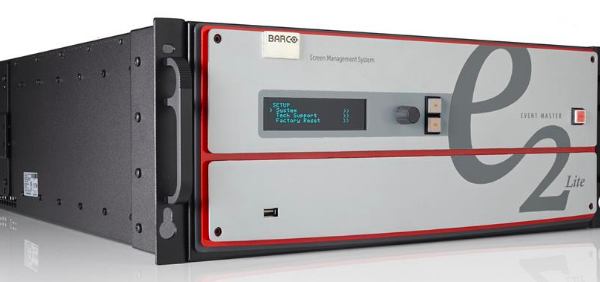

Bộ điều khiển trình chiếu Barco E2 Lite

Does not support PGM only mode

·  Up to 4x 4K inputs in input slots 7 & 8 – 4K@60p

·  Up to 3x HDMI 2.0 connectors @4K60p

·  1x DP1.2 connector @4K60p

·  4x SDI 3G or 1x 12G

·  Up to 11x HDMI 1.4a (2048×1200 max)

·  6x DisplayPort 1.1 (2048×1200 max)

·  4x DVI (2048×1200 max)

·  Maximum output resolution on any connector 2048×1200@60p

·  System native frame rate limited to 50/59.94/60 Hz

·  Output easy adapts to DVI connector via locking passive adapter

·  Configurable for up to 8x 1920×1200@60p

·  Independent edge blending/feathering control for all four sides

All outputs can be defined as Aux destinations for a total of 12 Aux with MVR or 16 Aux without MVR

Output color correction (Multi-view preview not available in all configurations)

·  Independent layer transitions or full Preview/Program transitions

·  Flexible layer allocation – up to 16 mixable or 32 single scalable PIP/key layers assignable to Program output screens

·  Some large configurations only support 8 mixable or 32 single scalable PIP layers

·  Luma and chroma key

·  Monitor all inputs and outputs, including Preview and Aux

·  Two outputs

·  Dedicated hardware same as E2 Event Master processor

·  Event Master controllers

·  Web GUI

·  Ethernet RJ-45, 1000/100/10 Mbps autosense

·  Hot-swappable dual-redundant power supplies

·  E2 Lite cards can only be used in E2 Lite. All Event Master cards can be used in E2 Lite.

Fan speed is software managed based on operating temperature. Reference ISO 7779.

Width: 43.2 cm (17.0 in) – without chassis handles, 48.3 cm (19 in) with chassis handles attached

Depth: 56.9 cm (22.4 in) from front panel to rear panel, 62.2 cm (24.5 in) overall

·  Dual-redundant, hot-swappable power supplies
